Transforming objects

Objects can be flipped, rotated, positioned and sized accurately.

transform

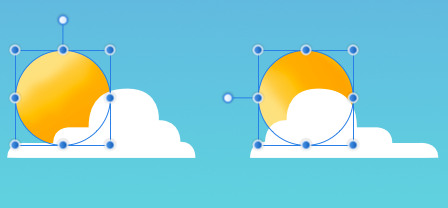

The background object has been rotated left, while the foreground object has been flipped horizontally.
Flip Horizontal Flip Vertical Rotate Anti-clockwise Rotate Clockwise To flip or rotate objects:
  1. Select one or more objects.
  2. Do one of the following:
    • On the Toolbar, select a flip or rotate option.
    • From the Layer menu's Transform sub-menu, select a flip or rotate option.
To position objects accurately:
  1. Select one or more objects.
  2. On the Transform panel, change X and/or Y values.
To nudge objects:
  1. Select one or more objects.
  2. Do one of the following:
    • For nudging by a single unit of measurement: Press an arrow key.
    • For 10x the single unit of measurement: Press an arrow key with the pressed.
To size objects accurately:
  1. Select one or more objects.
  2. On the Transform panel, change W and/or H values.
