Gradient editing

The Fill Tool lets you draw a simple color gradient across your object. The created fill path can be edited directly on the object to introduce more than two colors along the gradient path, introduce opacity, reposition added colors or control color transitions.

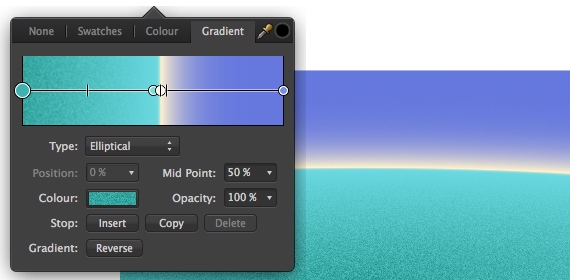

Color gradient example

Complex gradient applied directly on the object and then adjusted using the pop-up panel from the context toolbar.

Gradient settings

The following settings can be adjusted via tool's context toolbar (color swatch):

To modify a gradient (directly on an object):

With the Fill Tool selected, click an object with a gradient fill applied and then do any of the following:

To modify a gradient (via the tool's context toolbar):
  1. With the Fill Tool selected, click an object.
  2. From the context toolbar, select the color swatch.
  3. Click the Gradient option which lets you modify your gradient using the above settings.
